Modular balustrade system combining powder-coated steel (25x25mm) with solid wood handrail (45x45mm). For stairs, galleries, and indoor balconies.
Configure Now →
Premium quality meets DIY-friendly installation
Easy modular assembly without professional help. Complete with video tutorials.
Choose from 30 wood stains and 3 RAL steel colors to match your interior.
Powder-coated steel and solid wood handrail for lasting durability.
The INN-25 Balustrade System combines the stability of powder-coated steel with the warmth and elegance of solid wood. A well-designed modular system that you can install yourself.
The steel balusters (posts) are anchored in the floor and support the wooden handrail made of laminated wood. This creates a safe, durable, and visually appealing balustrade.
The choice depends on your floor type
All parts of the INN-25 system at a glance

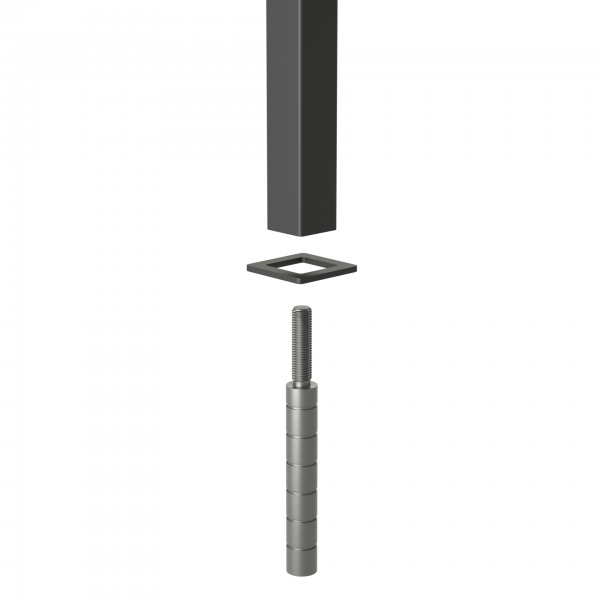

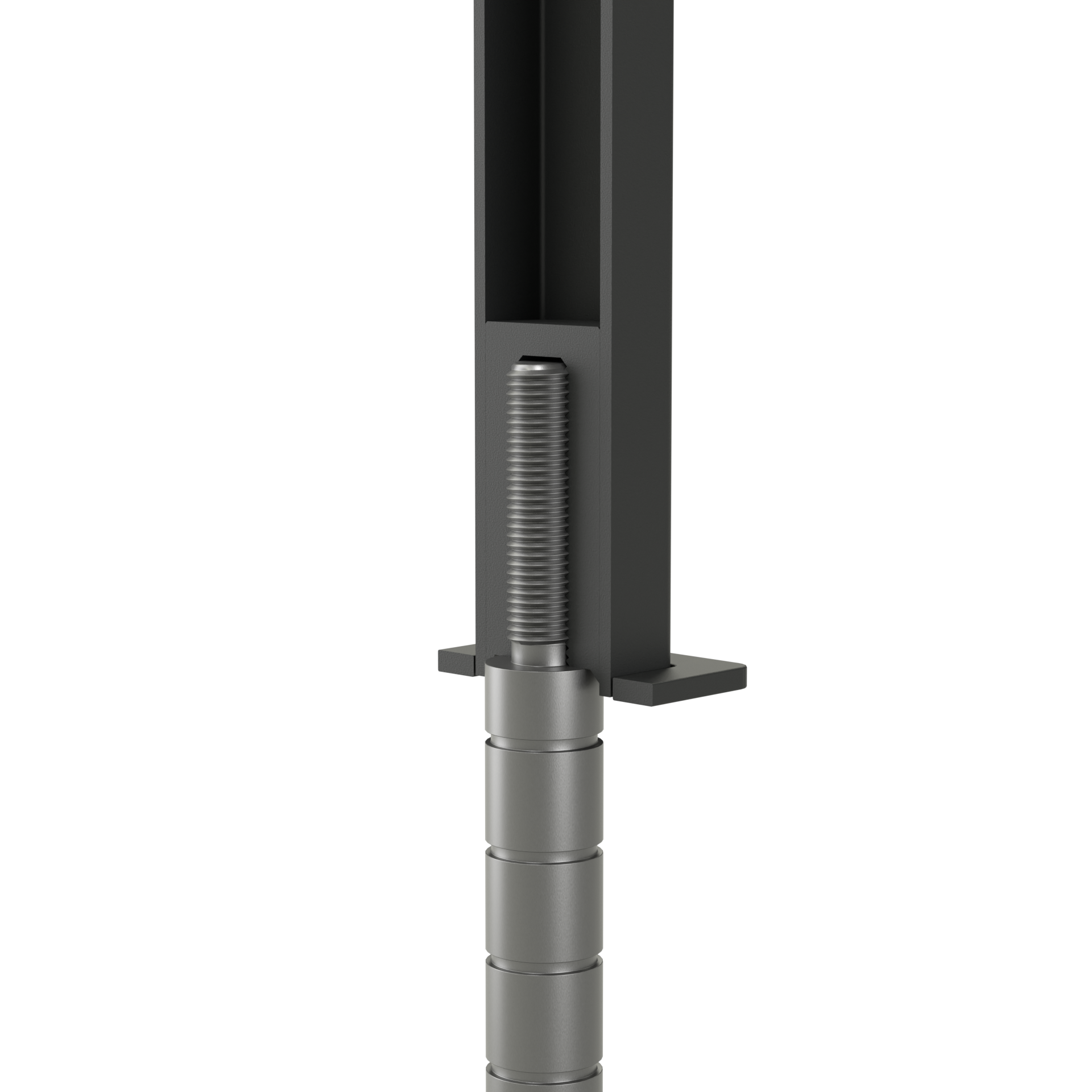

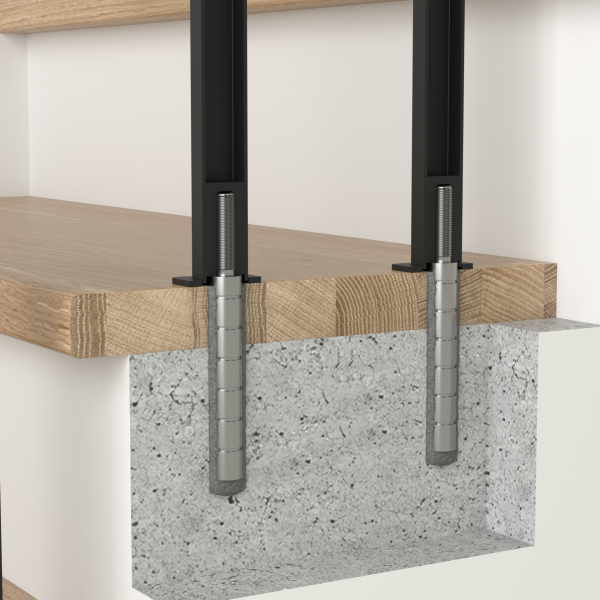

Steel post 25×25×1100mm with M10×39mm threaded anchor and Ø16×100mm anchoring part. Cover rosette included. For concrete, stone, tiles.

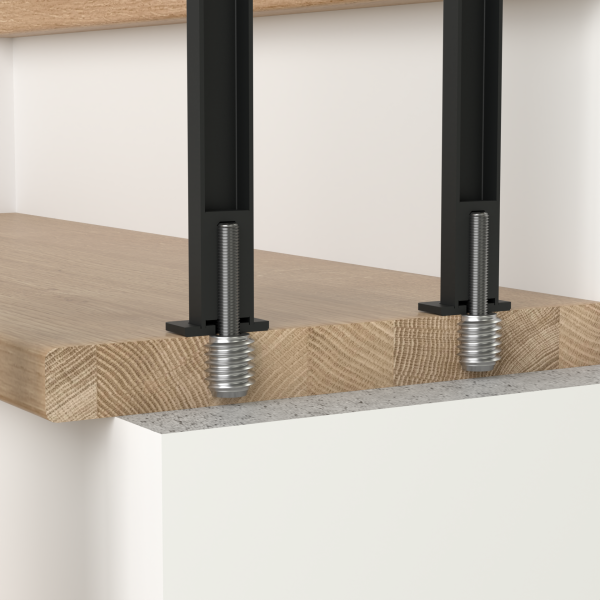

Steel post 25×25×1100mm with welded internal M10 thread and mounting plate. For screwing onto wood or plywood. No anchor needed.

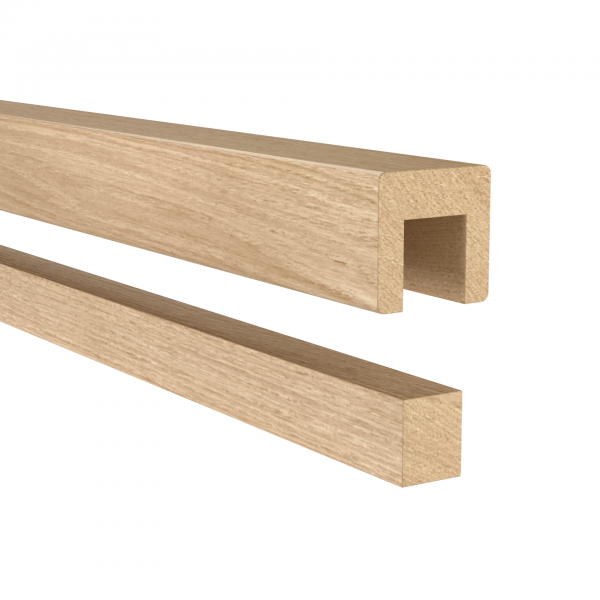

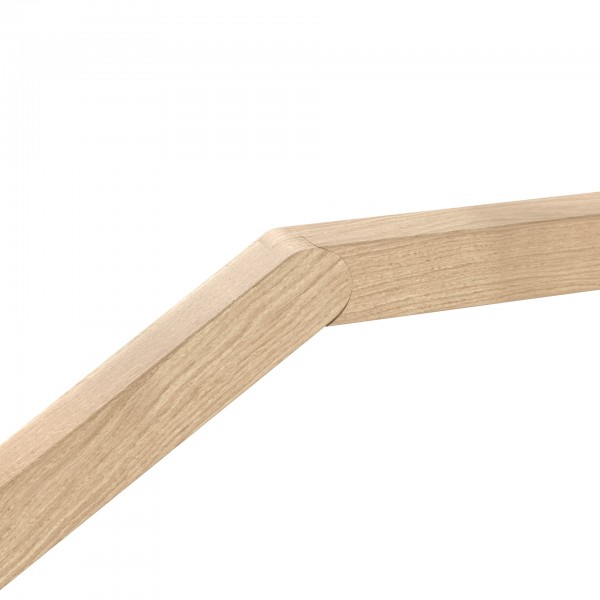

Laminated wood, 45×45mm profile with R5mm radius. Oak in 30 finishes.

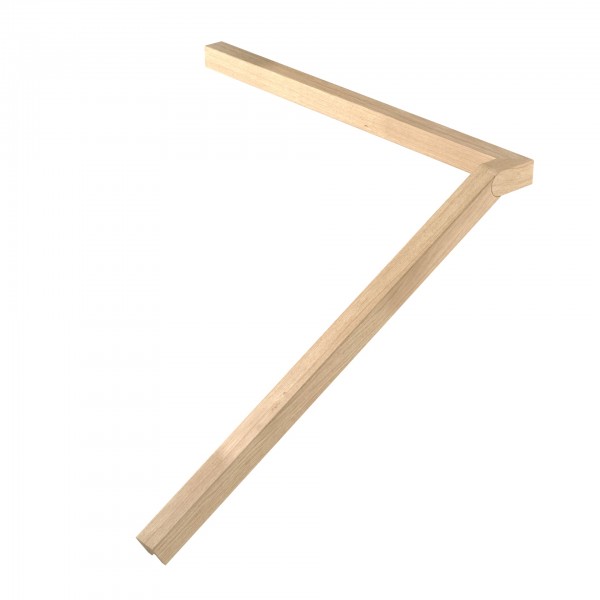

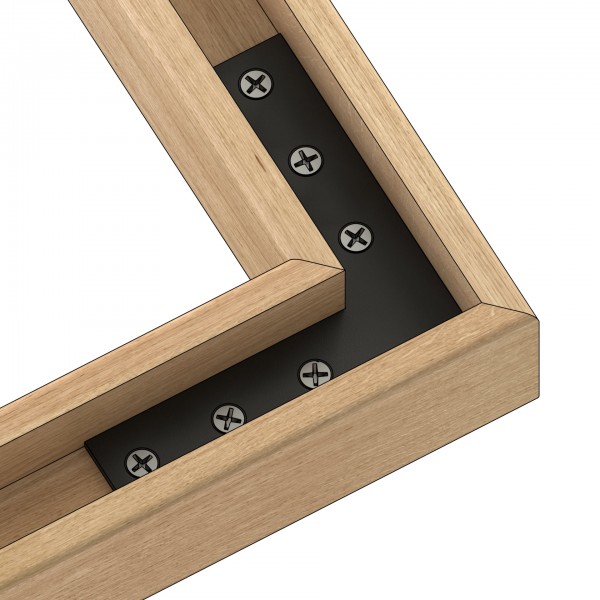

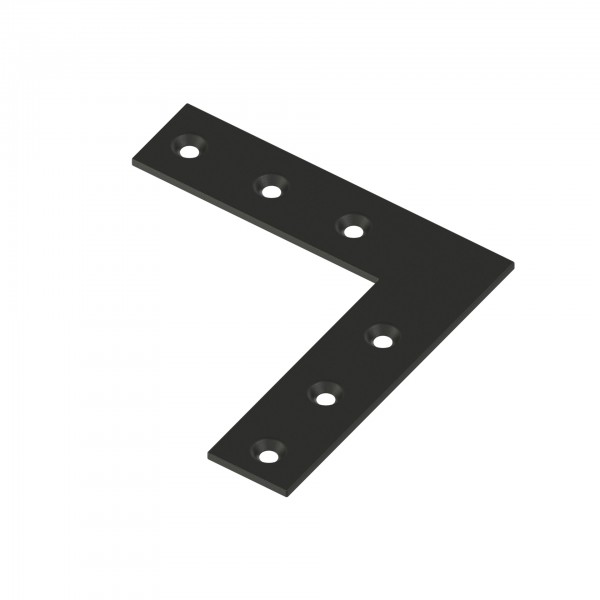

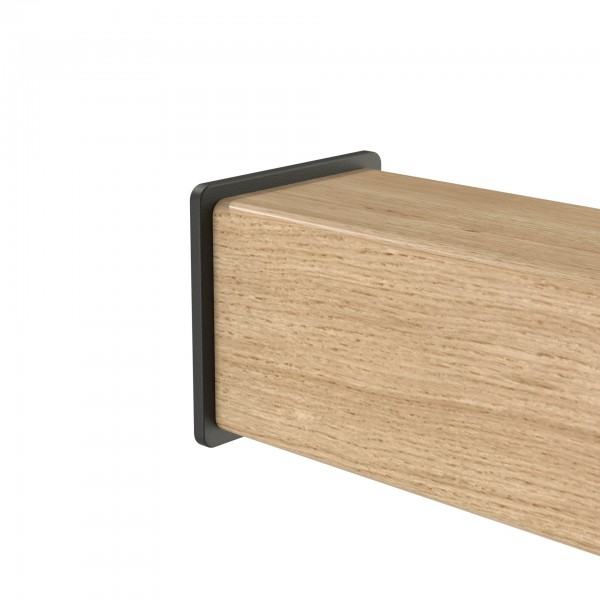

90° connectors (IB-CON-90), end caps (IB-CAP-END), wall brackets (IB-BRK-WALL), wood inserts (WK), mounting kits (ZM4). Everything for perfect installation.

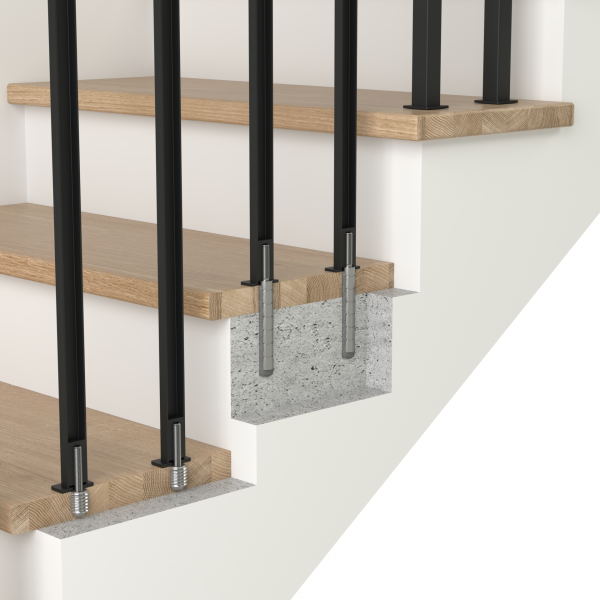

The right solution for every installation situation
Chemical anchoring is the most stable solution for concrete, stone and tiles. Follow these steps for a secure result.

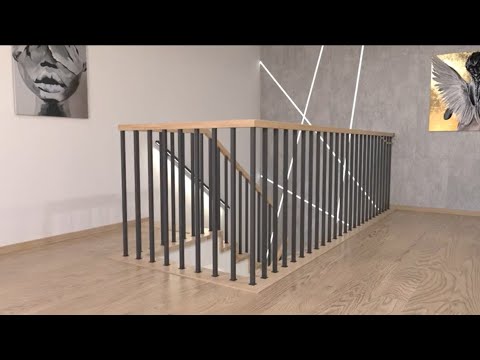

See how easy it is to install the INN-25 system
Calculation according to safety standard: max. 12cm gap between balusters
| Balustrade Length | Number of Balusters | Spacing (center-to-center) |
|---|---|---|
| 100 cm | 7-8 | ~14.3 cm |
| 150 cm | 11 | ~13.6 cm |
| 200 cm | 14-15 | ~14.3 cm |
| 250 cm | 18 | ~13.9 cm |
| 300 cm | 21-22 | ~14.3 cm |
Please read before ordering
The INN-25 system is designed exclusively for indoor use. Wood and coating are not weather-resistant. Outdoor use will cause damage and void the warranty.
All products are manufactured according to your specifications. Handrails with oil, lacquer, or stain may have production holes. No returns or exchanges possible.
Three standard colors, more RAL shades available on request
Step-by-step instructions for DIY assembly

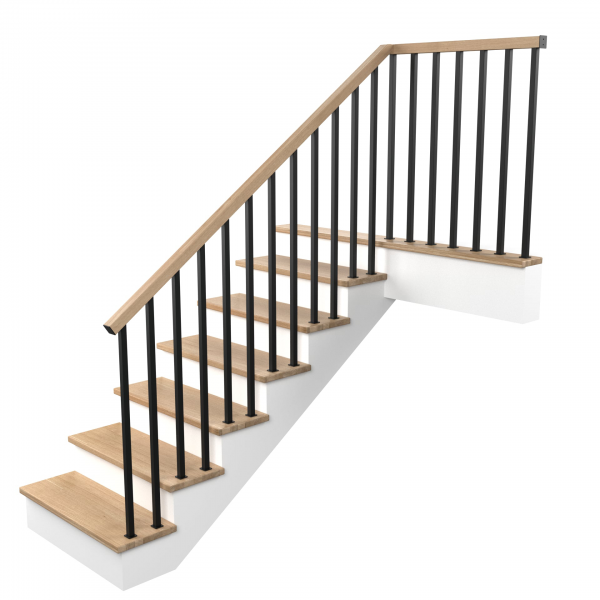

Measure and mark baluster positions. Maximum spacing: 120mm gap (145mm center-to-center) for public buildings. Plan 2 balusters per step for stairs.
Required: Drill with Ø18-20mm bit (for CH), laser level or straightedge, metal saw, screwdriver, construction adhesive (e.g., Tytan Classic FIX).
For CH: Drill holes Ø18-20mm, 3-5mm deeper than anchor length. Clean thoroughly from dust. For GW: Ensure wood is min. 25mm thick.
Insert resin cartridge into dispensing gun. Fill hole from bottom up, about ⅔ full. Avoid overfilling - excess will overflow when inserting anchor.
Screw anchor firmly into baluster. Insert into resin-filled hole with slight rotation. For GW: Screw M10 threaded rod into floor, then attach baluster.
CRITICAL: Plumb balusters immediately! Curing time: 5-15 minutes depending on temperature. Once set, adjustment is impossible.
Use laser level or straightedge to mark the cutting line on all balusters. For stairs, follow the stair angle. Standard height: 1100mm from floor.
Cut balusters to marked height using metal saw. For stairs, cut at the same angle as the handrail. File edges smooth to prevent injury.
Place wooden handrail onto balusters. The channel on the underside fits over the steel posts. Secure with screws through pre-drilled holes.
Measure gaps between balusters in the handrail channel. Cut wood filler strips to fit each section precisely.
Apply construction adhesive to all 5 edges of filler strip (or channel surfaces). Press firmly into place. Use tape to hold while curing.

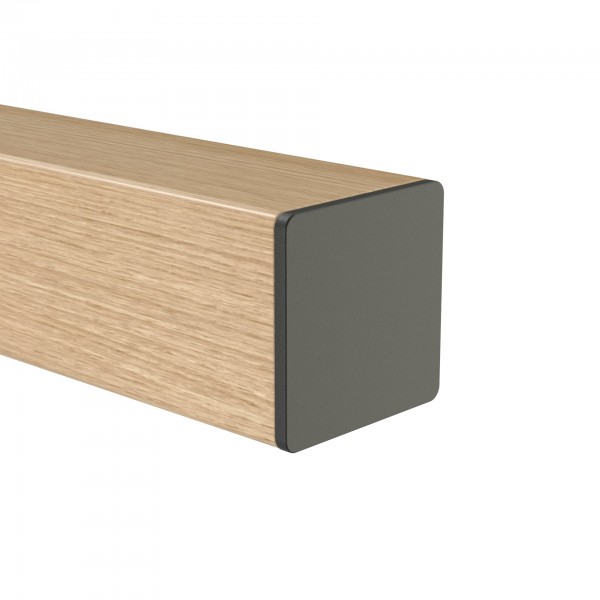

Attach end caps to handrail ends. Add wall brackets if needed. Install cover rosettes around CH balusters. Clean all surfaces.

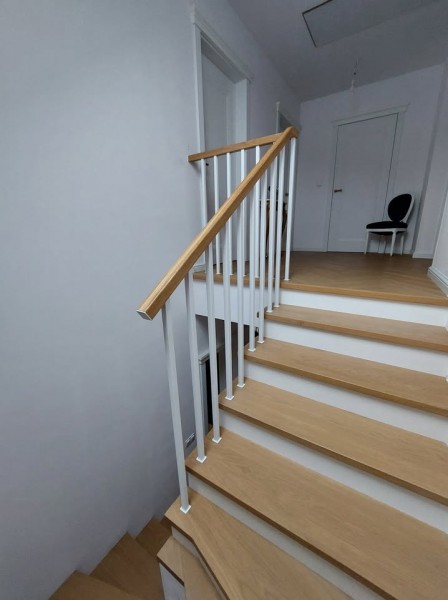

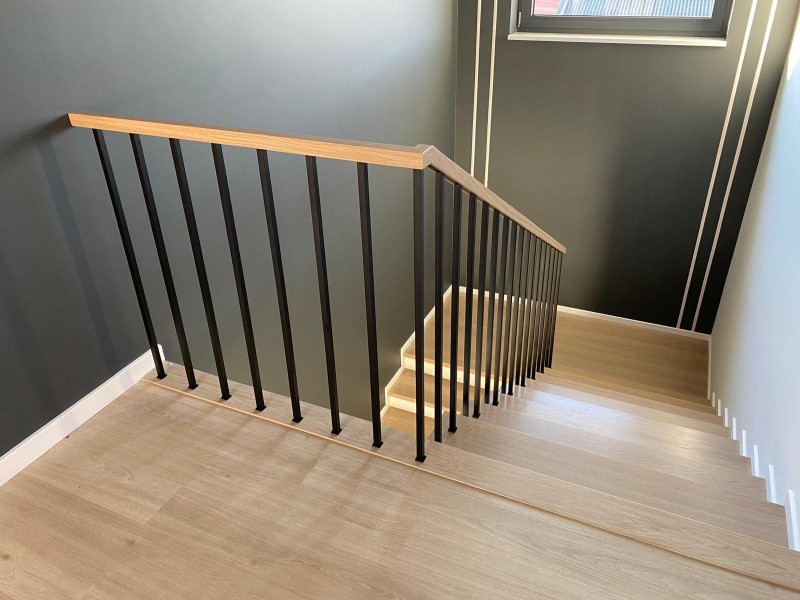

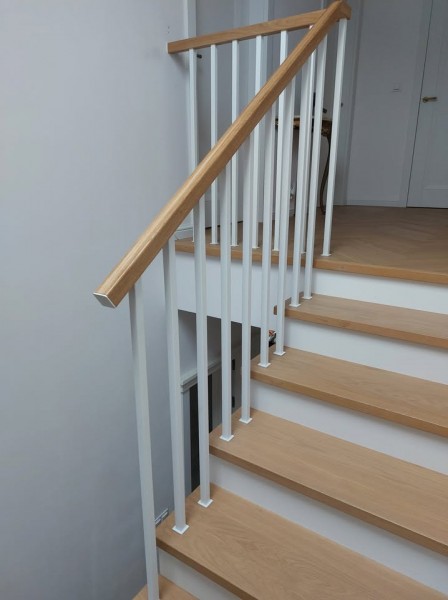

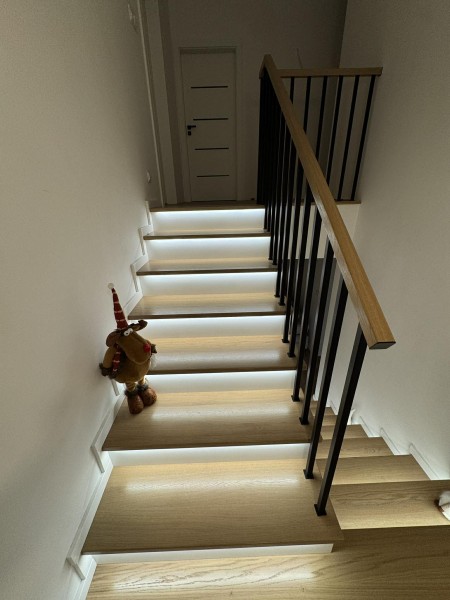

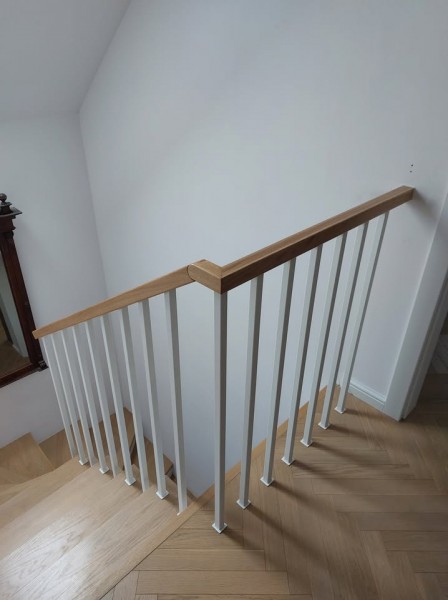

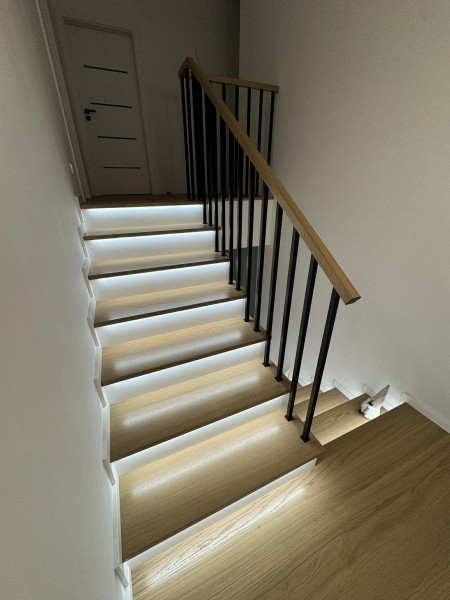

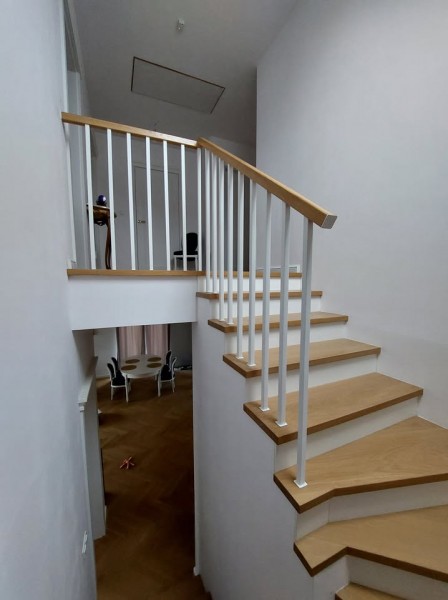

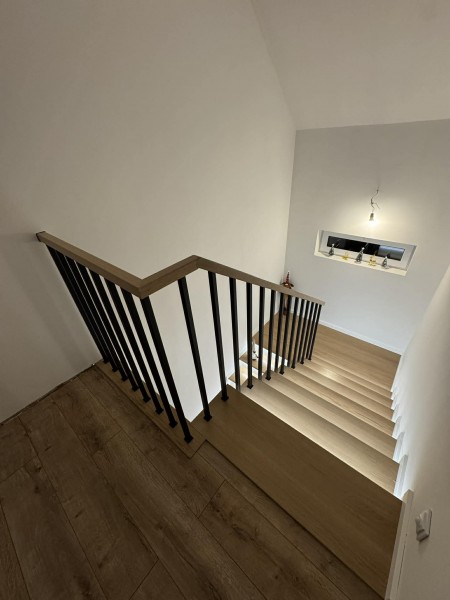

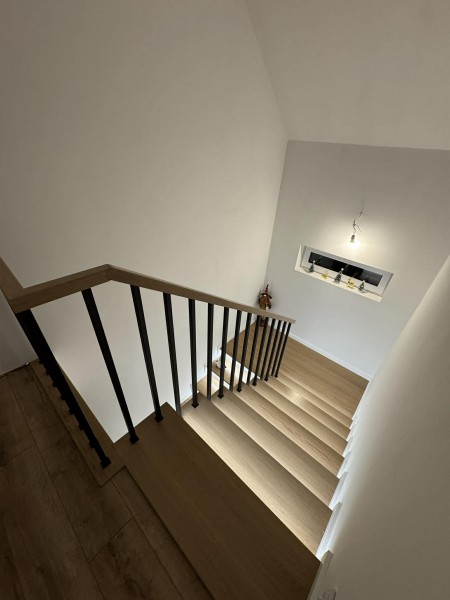

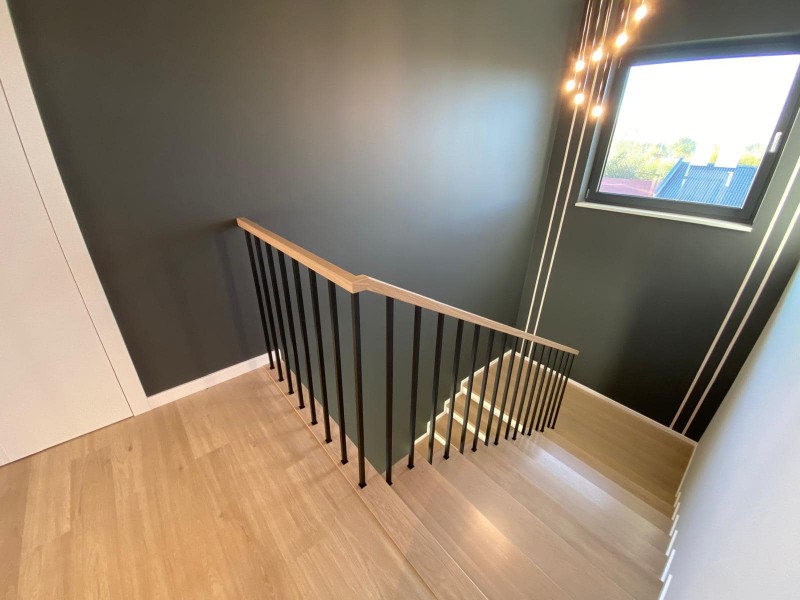

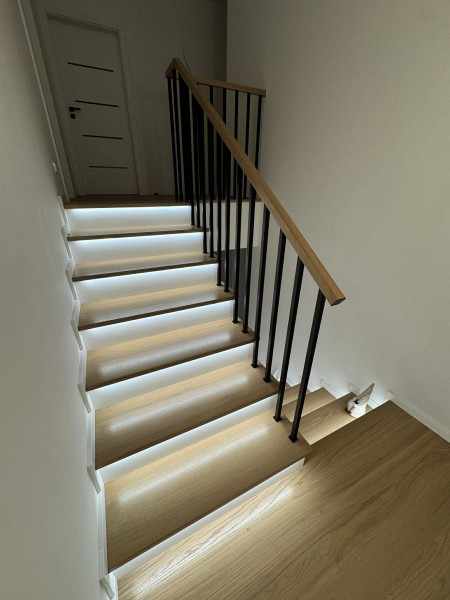

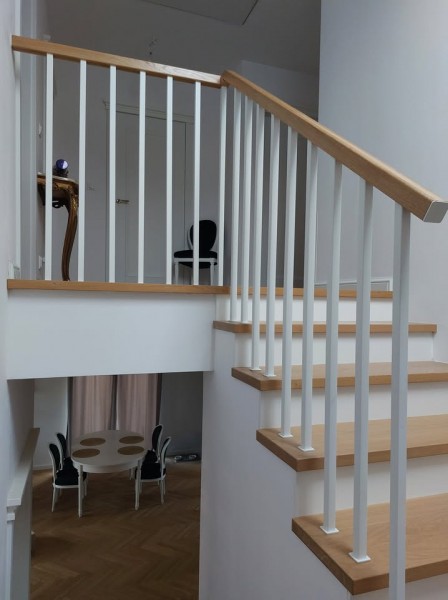

See how others have installed the INN-25 system
5 simple steps to your perfect balustrade
Formula: (Length in cm ÷ 14.5) + 1 = Number of balusters
| 100 cm | → 7-8 pcs |
| 200 cm | → 14-15 pcs |
| 300 cm | → 21-22 pcs |
Natural finishes included, stains add surcharge. Click to zoom.
Natural
+0 €/m
Weitere Premium-Geländersysteme sind in Arbeit
Coming Soon

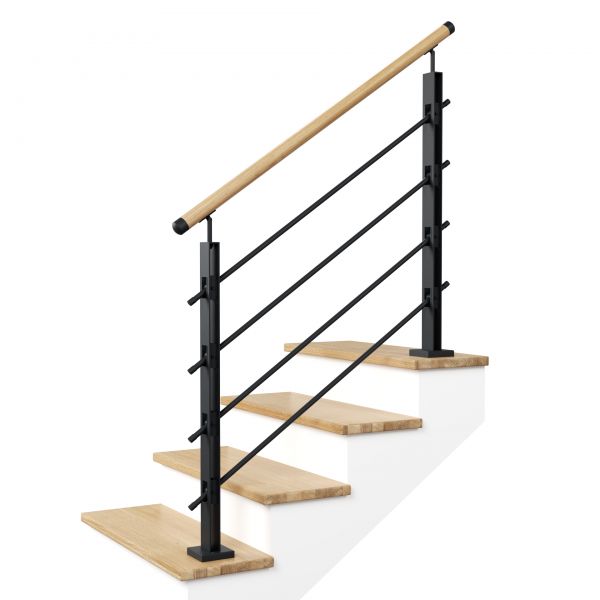

Holz + pulverbeschichteter Stahl, modulare Höhen 75-150cm. Industrieller Charme trifft moderne Eleganz.
Coming Soon
Robustes 50×50mm Profil in allen RAL-Farben. Für Balkone und große Flächen, 50-400cm.
Coming Soon
Moderne vertikale Lamellenoptik im skandinavischen Stil. Zeitlos und elegant.
Verfügbar

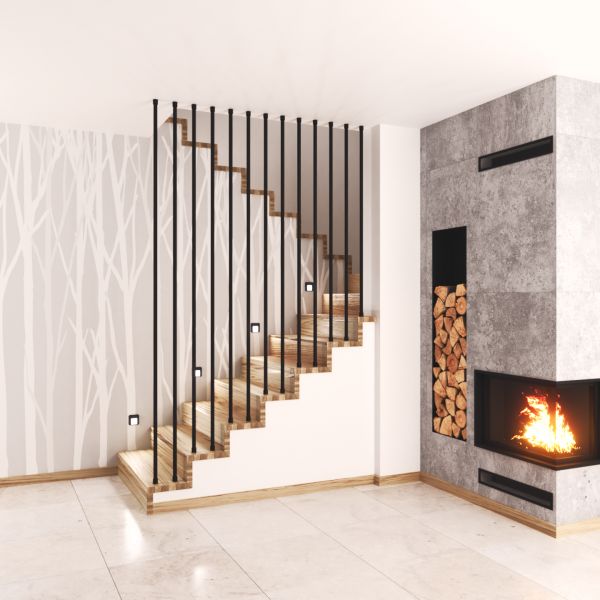

Vertikale Harfen-Baluster in 3 Profilvarianten. Klassischer Charakter mit Designanspruch.
Verfügbar

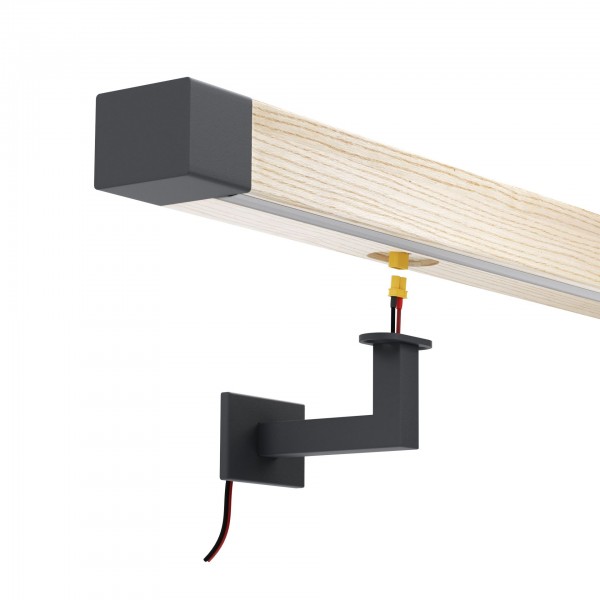

Beleuchtete Handläufe mit integrierter LED-Technik. Atmosphäre und Sicherheit vereint.
